ObjectHashAggregateExec Aggregate Physical Operator

ObjectHashAggregateExec is a unary physical operator (i.e. with one child physical operator) that is created (indirectly through AggUtils.createAggregate) when:

  • …​FIXME

// ObjectHashAggregateExec selected due to:
// 1. spark.sql.execution.useObjectHashAggregateExec internal flag is enabled
scala> val objectHashEnabled = spark.conf.get("spark.sql.execution.useObjectHashAggregateExec")
objectHashEnabled: String = true

// 2. The following data types are used in aggregateBufferAttributes
// BinaryType
// StringType
// ArrayType
// MapType
// ObjectType
// StructType
val dataset = Seq(
  (0, Seq.empty[Int]),
  (1, Seq(1, 1)),
  (2, Seq(2, 2))).toDF("id", "nums")
import org.apache.spark.sql.functions.size
val q = dataset.
  groupBy(size($"nums") as "group"). // <-- size over array
  agg(collect_list("id") as "ids")
scala> q.explain
== Physical Plan ==
ObjectHashAggregate(keys=[size(nums#113)#127], functions=[collect_list(id#112, 0, 0)])
+- Exchange hashpartitioning(size(nums#113)#127, 200)
   +- ObjectHashAggregate(keys=[size(nums#113) AS size(nums#113)#127], functions=[partial_collect_list(id#112, 0, 0)])
      +- LocalTableScan [id#112, nums#113]

scala> println(q.queryExecution.sparkPlan.numberedTreeString)
00 ObjectHashAggregate(keys=[size(nums#113)#130], functions=[collect_list(id#112, 0, 0)], output=[group#117, ids#122])
01 +- ObjectHashAggregate(keys=[size(nums#113) AS size(nums#113)#130], functions=[partial_collect_list(id#112, 0, 0)], output=[size(nums#113)#130, buf#132])
02    +- LocalTableScan [id#112, nums#113]

// Going low level...watch your steps :)

// copied from HashAggregateExec as it is the preferred aggreate physical operator
// and HashAggregateExec is checked first
// When the check fails, ObjectHashAggregateExec is then checked
import q.queryExecution.optimizedPlan
import org.apache.spark.sql.catalyst.plans.logical.Aggregate
val aggLog = optimizedPlan.asInstanceOf[Aggregate]
import org.apache.spark.sql.catalyst.planning.PhysicalAggregation
import org.apache.spark.sql.catalyst.expressions.aggregate.AggregateExpression
val aggregateExpressions: Seq[AggregateExpression] = PhysicalAggregation.unapply(aggLog).get._2
val aggregateBufferAttributes = aggregateExpressions.
 flatMap(_.aggregateFunction.aggBufferAttributes)
import org.apache.spark.sql.execution.aggregate.HashAggregateExec
// that's one of the reasons why ObjectHashAggregateExec was selected
// HashAggregateExec did not meet the requirements
scala> val useHash = HashAggregateExec.supportsAggregate(aggregateBufferAttributes)
useHash: Boolean = true

// collect_list aggregate function uses CollectList TypedImperativeAggregate under the covers
import org.apache.spark.sql.execution.aggregate.ObjectHashAggregateExec
scala> val useObjectHash = ObjectHashAggregateExec.supportsAggregate(aggregateExpressions)
useObjectHash: Boolean = true

val aggExec = q.queryExecution.sparkPlan.children.head.asInstanceOf[ObjectHashAggregateExec]
scala> println(aggExec.aggregateExpressions.head.numberedTreeString)
00 partial_collect_list(id#112, 0, 0)
01 +- collect_list(id#112, 0, 0)
02    +- id#112: int
Table 1. ObjectHashAggregateExec’s Performance Metrics
Key Name (in web UI) Description

numOutputRows

number of output rows

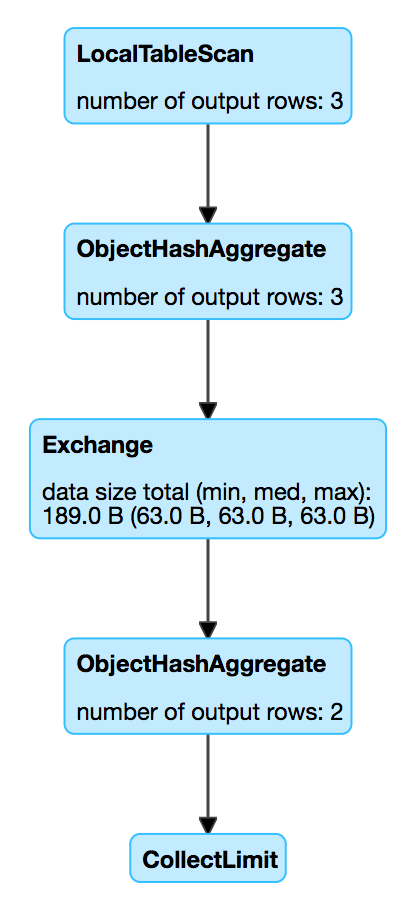

spark sql ObjectHashAggregateExec webui details for query.png
Figure 1. ObjectHashAggregateExec in web UI (Details for Query)

Executing Physical Operator (Generating RDD[InternalRow]) — doExecute Method

doExecute(): RDD[InternalRow]
Note
doExecute is part of SparkPlan Contract to generate the runtime representation of a structured query as a distributed computation over internal binary rows on Apache Spark (i.e. RDD[InternalRow]).

doExecute…​FIXME

supportsAggregate Method

supportsAggregate(aggregateExpressions: Seq[AggregateExpression]): Boolean

supportsAggregate is enabled (i.e. returns true) if there is at least one TypedImperativeAggregate aggregate function in the input aggregateExpressions aggregate expressions.

Note
supportsAggregate is used exclusively when AggUtils is requested to create an aggregate physical operator given aggregate expressions.

Creating ObjectHashAggregateExec Instance

ObjectHashAggregateExec takes the following when created:
